Security Caging Products

Cross-guard by Newton.

Secure and protect your company’s valuable assets with Cross-Guard Security Caging by Newton. Made in the USA, our sturdy 16-gauge steel caging solutions provide a secure perimeter around any asset that requires an added level of security. Durability and long lasting aesthetics is manufactured in every panel with a powder coat polyester painted finish. Sight options are provided with choices in square hole pattern size which include ½”, 1-½”, solid, and a combination of solid and square holes (hybrid). Optional roof and under floor panels are available to provide added security. To discuss what Newton can do for you, please direct all inquiries to your Newton Customer Service Representative.

Modular Scalable Caging Systems for the Data Center Environment

Manufactured from rugged 16 gauge thick steel construction

  • Powder Coated with Polyester Hybrid paint for a long lasting and durable finish.
  • 4’ Sliding door weldment with high security mechanical locking system
  • Standard co-location cages can be configured in 4 x 8, 8 x 8 or virtually any sizes that fits your needs.
  • Standard heights are 8 feet with cage extensions to reach twelve feet in height
  • Modular and scalable, caging systems for the data center environment can be re-configured to meet future demand

Optional

  • Bar Code Reader for entry access
  • Roof Panels for additional security: HIPPA, Financial, Government applications
  • Below the raised floor physical barrier panels for additional security.

Airflow

  • Standard panels are punched to provide approximately 53% open area.
  • Solid panels, Perforated patterns designed to manage air flow, hot aisle, cold aisle available.

Stability

  • Caging is anchored to the floor, braced at recommended intervals
  • Support Angles Brace Long lineal runs, as well as, overhead bracing kits

Cage Assembly

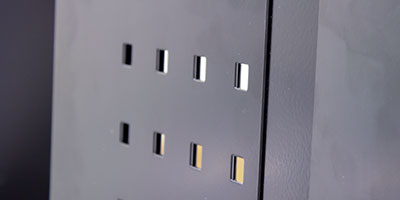

  • Cages consist of vertical posts, horizontal posts,wall panels.
  • Wall panels are available in small, large and extra large panels
  • Vertical posts are placed nominally at 8’ intervals
  • When fully assembled two small panels and one large panel make up an 8’ section
  • Ceiling Panels are modular and available in lengths corresponding to various cage sizes
  • Doors are constructed using a Door Panel and Door Kit

Made n the USA

All our products are manufactured in Butner, NC, USA

The Security Caging Catalog

A catalog of Newton's Security Caging. If you prefer to download by section, follow the links below.
