Equipment Racks: Seismic Network Bay Kit

217814xxxx

This series of Network Bays includes reconfigured guard rail kits to help protect the deeper equipment placed inside of the Network bay. The configuration of the 217814xxxx Series is with a standard upright (no return flanges), giving a little more room for inter bay wire harnesses. The base cover is a nominal 4″ high with the 1st mounting hole at 5″ from bottom of frame.

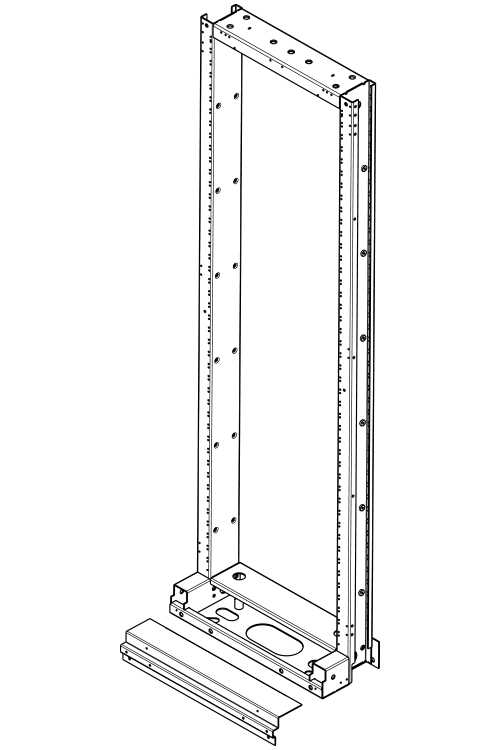

Seismic Network Bay kit

Seismic Network Bay kit

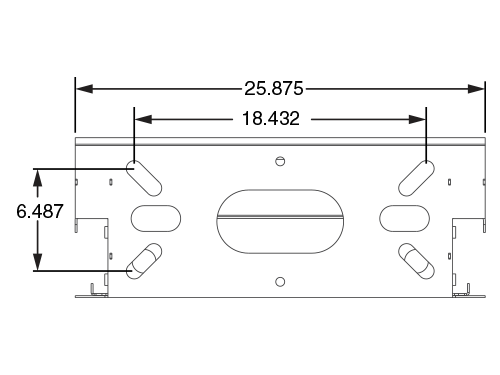

Footprint

Seismic Network Bay FootPrint

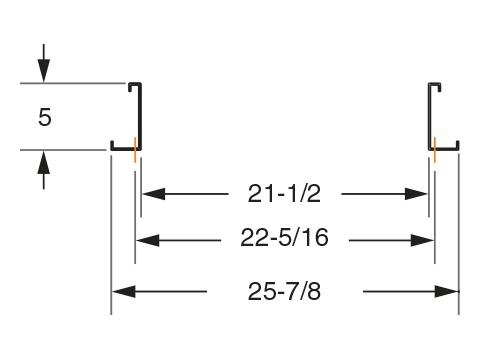

Network Bay Upright profile

Seismic Network Bay Upright profile

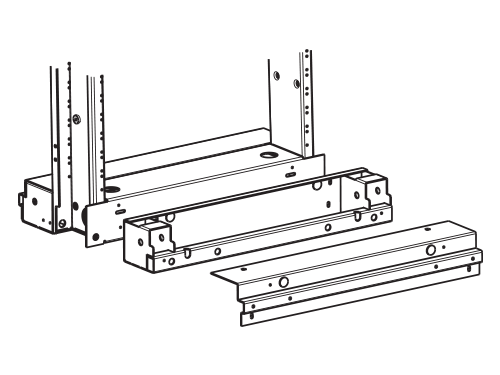

555 profile

5-5-5 Network Bay profile

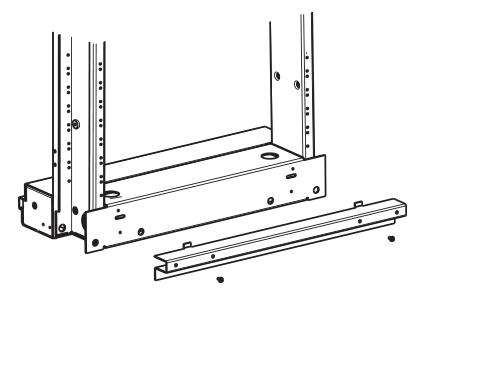

552 profile

5-5-2 Network Bay profile

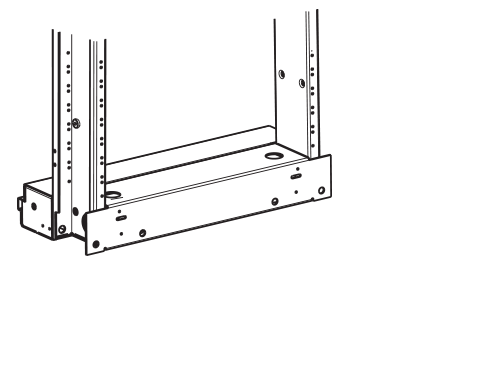

550 profile

5-5-0 Network Bay profile

Notes
  • XX= finish code; standard finish, 64. Others available upon request.
  • Front and rear of frame tapped for 12-24 screws.
  • Cable tie mounts are included
  • Order cable tie bar kit (0041190110) separately.
  • Order accessories as required.

Table below shows complete part numbers for a limited selection of Network Bays . Newton has several Network Bay configurations to fit your application, contact your CSR for other height and mounting options

Network Bay Ordering TABLE
Part Number A B C D E Rack Duct Hole Pattern Mounting Spaces Height
2201360031 21-1/2″ 22-5/16″ 25-15/16″ 16″ 12-15/16″ 23″ Network Bay (5-5-0) closed 1″ WECO 76 7′-0″
2180870031 21-1/2″ 22-5/16″ 25-15/16″ 16″ 12-15/16″ 23″ Network Bay (5-5-5) closed 1″ WECO 76 7′-0″
2177400031 21-1/2″ 22-5/16″ 25-15/16″ 16″ 12-15/16″ 23″ Network Bay (5-5-0) closed EIA WIde 44 7′-0″
2178130031 21-1/2″ 22-5/16″ 25-15/16″ 16″ 12-15/16″ 23″ Network Bay (5-5-5) includes Cable Tie Bar Kit closed EIA WIde 44 7′-0″
2178140031 21-1/2″ 22-5/16″ 25-15/16″ 16″ 12-15/16″ 23″ Network Bay closed EIA WIde 44 7′-0″
2178140064 21-1/2″ 22-5/16″ 25-15/16″ 16″ 12-15/16″ 23″ (5-5-2) Network Bay closed EIA WIde 44 7′-0″
2178140030 21-1/2″ 22-5/16″ 25-15/16″ 16″ 12-15/16″ 23″ (5-5-5) Network Bay closed EIA WIde 44 7′-0″
