Grounding

Grounding for Newton Equipment Racks

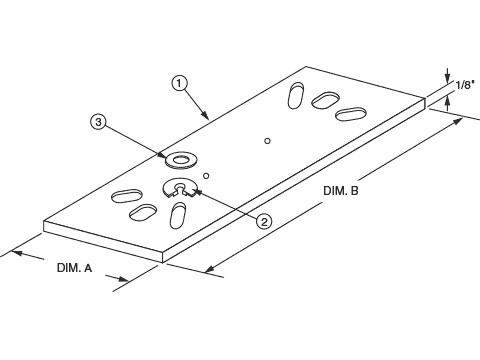

Floor Isolation Pad for UFER
Newton # Rack
0041170010 19″
0041180010 23″

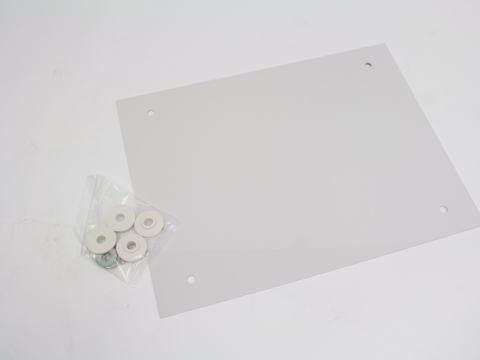

Isolation Pad for Data Rack
Newton #
0040850000
Duplex AC outlet Bracket for UFER
Newton #
0041120030
0041120031
Filler Panel
Newton # Description
0043540064 AC Outlet Strip Kit 15 Amp
0043540131 Blank Strip Kit
0043540164 Blank Strip Kit
0043540264 Raceway filler panel for a 2.5″ wide spacer box
0043540331 Blank 5″ Filler Kit
0043540364 Raceway filler panel for a 5″ wide spacer box.
Isolation pad for Data Rack
Newton #
0040850000
Floor Isolation Pad for UFER
Newton # Rack
0041170010 19″
0041180010 23″
Ground Bar And Splice Insulated
Part Number Description
2110480213 23″ Ufer W/lugs
Ground Bar And Splice
Part Number Description
2125040113 19″ Unequal Flange Rack W/lugs
2125040213 23″ Unequal Flange Rack W/lugs
Ground Strap Assembly
Part Number Description
2128680400 13 ″
2128680700 6″

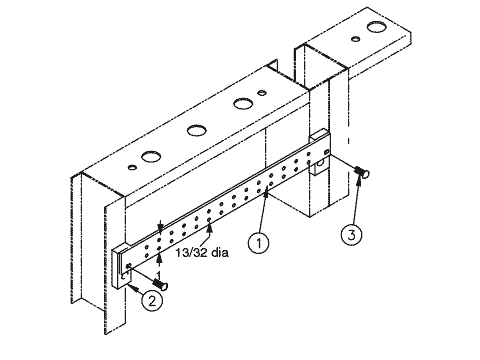

Ground Bar W/ Isolators
Part Number Description
2173630010 23″ X 2″
2173630210 19″ X 2″
INSULATOR PAD
Part Number Description
2105460010 FOR 23″ UFER
UFER ISOLATION KIT
Part Number Description
0046160100 19″ SEISMIC UFER ISOLATION KIT
0046160200 for a 23″ UFER
Reversed Designation Strip
Newton #
2113920000

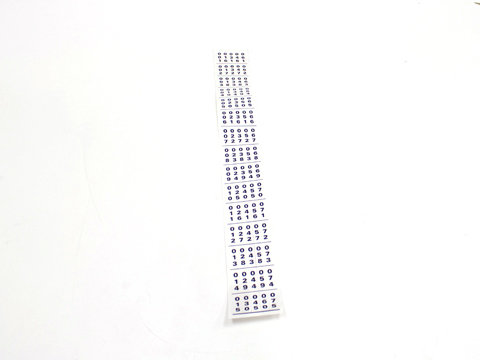

Designation Strip
Newton #
0040790000

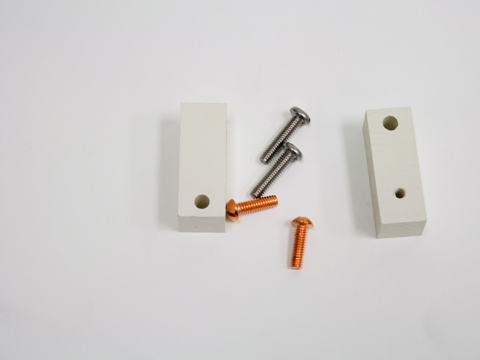

Insulated Standoffs
Newton #
0040870000

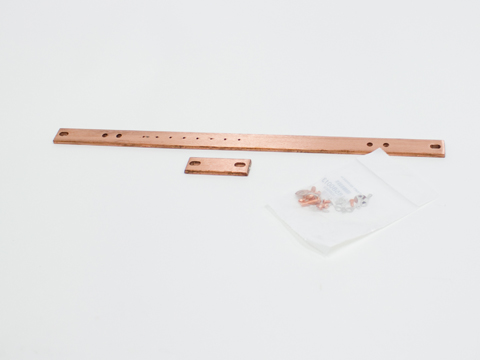

Ground Bar & Splice for 19″ & 23″ Racks
Newton # Rack Size Depth
0040280013 19″
0040290013 23″

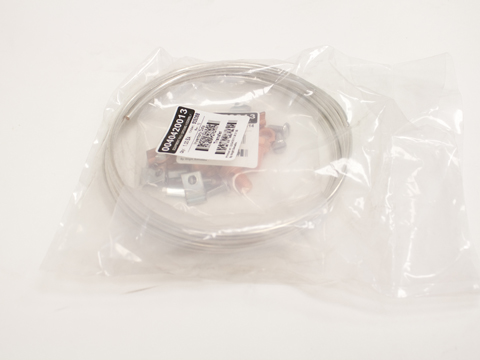

Equipment Rack Ground Assembly
Newton #
0040420013

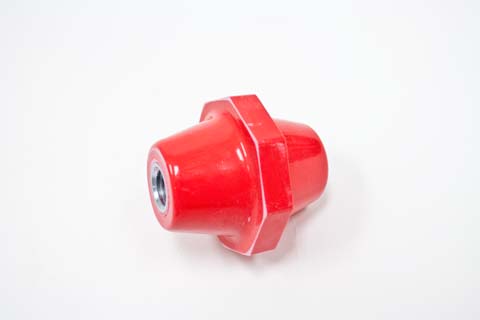

Moulded Polyester-fiberglass Insulator
Newton # Rod Size
2106830100 1/2-13
0030610100 1/4-20
0030610200 3/8-16
0030610300 1/2-13
0030610400 5/8-11
0030610500 5/8-11
2057750600 1/2-13
Floor Isolation Pad for UFER
Newton # Rack
0041170010 19″
0041180010 23″
