Capabilities

CNC Fabrication

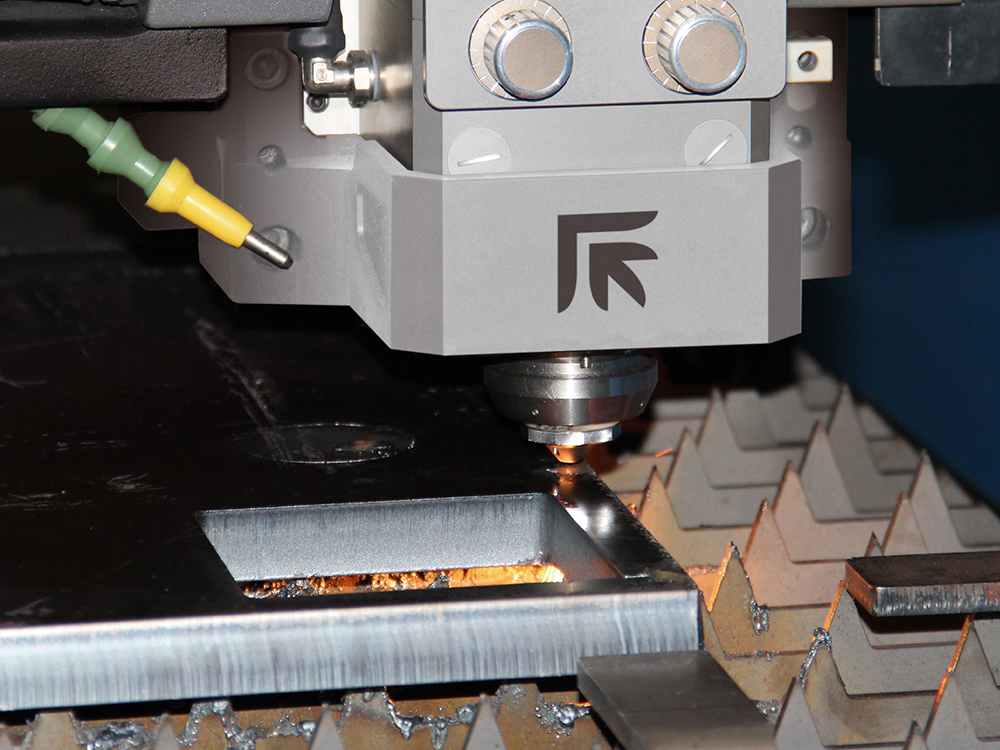

Laser

  • Prima Platino 1530, 5000 Watt, 60 x 120, Auto load/unload

Punching

  • (2) Finn-Power SG-6, FMS- 60 x 120, Auto load/unload
  • Amada Vipros 367 Turret Punch 60 wide .25″ Thick Material
  • Boschert CU WKll Punching Machine .5″ Thick Material

Stamping

  • Pacific Pressformer Punch Presses 150 Ton, 30″ x 50″ Bed Area

Machining

  • (2) Haas Vertical Machining Center, 84x32x30 XYZ, 20 HP,7500 RPM
  • Haas Vertical Machining Center, 40 x 20 x 25 XYZ, 20 HP,7500 RPM
  • Moline Multi Spindle Drill Presses (1- 16) Spindles

Sawing

  • HE&M Horizontal Band Saw 18″ x 27″ cutting capacity
  • Eisele Cold Cut Saw 4.7″ x 4.7″ Square , 5.1″ Round

Plasma

  • High Definition Plasma/Oxy Acetylene Cutting System 120″x156″, 8″

Welding

  • (8) Westwood Robotic weld Cells, Aluminum, Steel or Stainless
  • (20+) Miller MIG and TIG Manual Welding Stations
  • (3) Spot welding 50, 100 and 200 KVA ¼″ Aluminum, 3/8″ Steel

Cleaning and Deburring

  • (2) Timesaver 36″ wide-belt abrasive finishing machines
  • (2) Sweco Vibratory Finishing Mills, Can handle parts to 36″

Forming

  • Prima Power Robotic Forming Cell 8 axis, 10′ Length, 150 Ton with KR 90 KU KU Robot 6 Axis Auto Load and Unload
  • Durma AD-S 40320 Press Brake 12 axis, 12′ Length, 245 Ton
  • V130 Trumpf Press Brake 8-10 axis, 10′ Length, 143 Ton
  • (2) V-50 Trumpf Press Brake 8 axis, 4′ Length, 50 Ton
  • V230 Trumpf Press Brake 8 axis, 10′ Length, 235 Ton
  • V170 Trumpf Press Brake 8 axis, 13′ Length, 187 Ton
  • TruBend Trumpf Press Brake 5 axis, 4′ Length, 55 Ton
  • LVD Press Brake 8′ Length, 110 Ton
  • (2) Wysong Press Brake 6′-8′ Length, 110-140 Ton
  • Heim Press Brake 6′ Bending Length, 30 Ton
  • Pacific Press Brake 10′ Length, 110 Ton
  • Durma AD-S 30135 12 axis, 10′ Length, 150 Ton

Painting

  • Automated Powder Coat Painting System, Speed Avg. 10 ft/ min.
  • 5 Stage Spray Pre-treatment Cleaning System
  • Max Part size: 30″ wide x 72″ tall x 144″ length Capacity.
  • (2)Nordson Automatic Reclaim Powder Booth, Fast Color Change
  • Nordson Manual Non-Reclaim Powder Booth
  • Batch Painting System Powder Coat or Liquid Paint Capability
  • 30’ wide x 42″ tall x 240″ length Capacity
  • Five Stage Immersion Pre-Treatment Cleaning System
  • Burn Off Oven

Assembly

  • Haeger Insertion Presses 8 Ton/ 24″ Throat Depth
  • 15,000 Square Feet Dedicated Assembly Area
