Supporting Auxiliary Framing

Different ways to support and hang Auxiliary Framing.

Newton has various ways to connect and support Auxiliary Framing with a full line of accessories such as Post and brackets to make cable management easier and more organized.

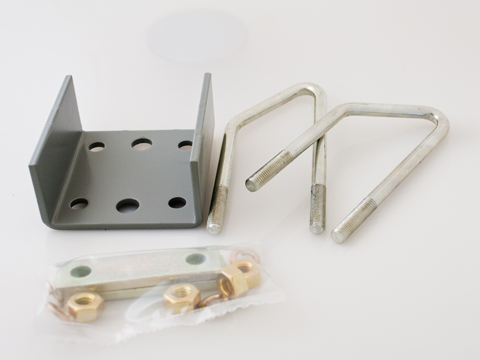

V-bolt Kit
Newton #
0010140030

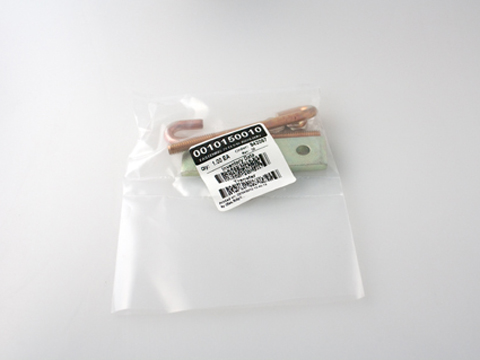

J-bolt Kit
Newton #
0010150010

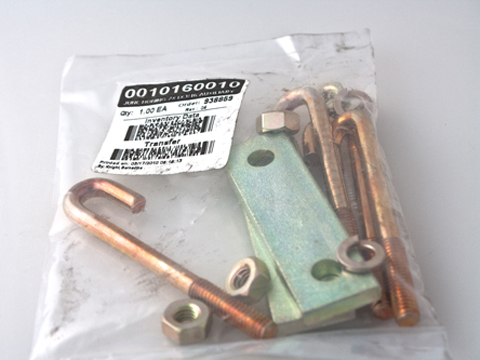

J-bolt Kit
Newton #
0010160010
Support Aux Framing Channel from EQ Rack
Newton #
0010570110

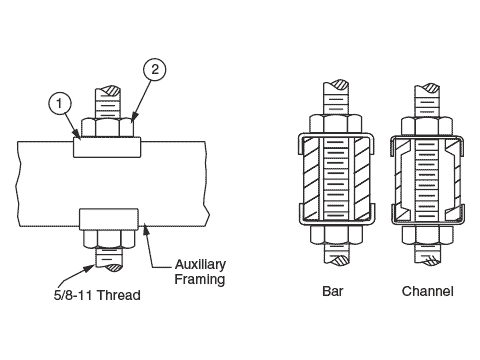

Supporting Channel from Threaded Rod
Newton #
2116800010
Raised Floor Stantion Kit
Newton #
2185130011

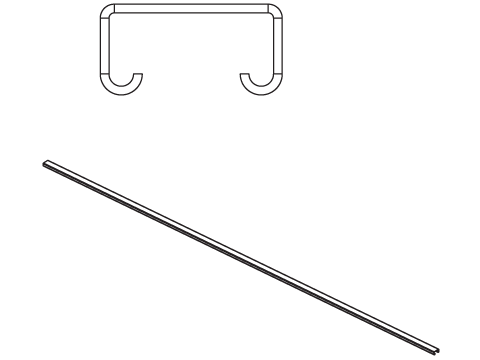

Unistrut P4000EA
Newton #
2169661000

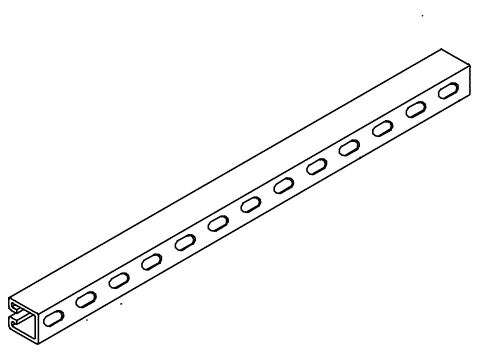

Unistrut Channel P1000T
Newton #
2093030130
Framing Kits
Newton # Description
2201400110 1/2″
2201400210 3/8″

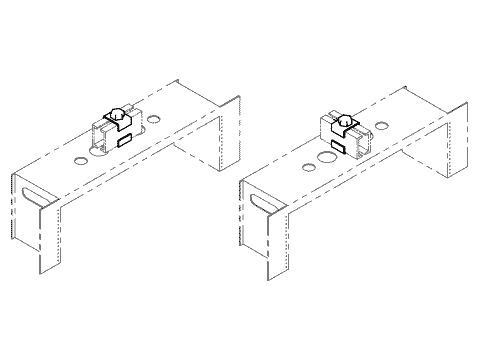

Framing Kits
Newton # Description
2196000210 Aux Channel To UFER Attach Kit
Cable Bracket Kit
Newton # Description
2105290130 2″ x 9/16″ x 3/16″
2105290230 2″ x 9/16″ x 3/16″

Cable Rack Application Guide

An example Illustration of a typical multi-tier cable rack assembly

Auxillary Framing Application Guide
