Securing & fastening Auxiliary Framing

Different ways to secure Auxiliary Framing.

Newton has various kits to help secure Auxiliary Framing allowing site's infrastructure to be more study.

Fastening Frame Top Angle to Aux. Pipe
Newton #
0010120010
Fastening Frame Top Angle to Aux. Channel
Newton #
0010130010
Framing Channel from Threaded rod
Newton #
0010180010
Mounting Kit To Mount Fiber Channel To A Variety Of Parts
Newton #
2184390010
Compression Splice Clamps
Newton #
0010230010
Compression Splice Clamps
Newton # Aux. Type
0010240010 Bar T junction
0010240110 Channel T junction
0010240210 Channel x junction
Supporting Parallel Aux From Threaded Rod
Newton # Aux. Type
0010250010 Bar Hole
0010250110 Bar Hole
0010250110 Channel Hole
2116800010 Channel Slot
2116800110 Bar Slot
"C" Clip Kit
Newton # Aux.
0010260010 Bar
0010260110 Channel
auxiliary framing channel to an "L" shaped wall angle bracket
Newton # Aux.
0010270010 Bar
0010270110 Channel
"C" Clip
Newton # Aux.
0010280010 Bar
0010280110 Channel
"C" Clip Kit
Newton # Aux.
0010290010 Bar
0010290110 Channel
Splice kit
Newton # Aux.
0010300010 Bar
0010300110 Channel
Bracing kit
Newton # Aux.
0010400010 Bar
0010400110 Channel
Bracing kit
Newton # Aux.
0010410010 Bar
0010410110 Channel
Bracing kit
Newton # Aux.
0010460030 Bar
0010460130 Channel
Support Aux from Channel
Newton #
2184390010
Fastening Top Angle to Parallel AUX.
Newton # Type
0010320010 Bar
0010320110 Channel
Fastening Top Angle to Parallel AUX.
Newton # Type
0010340010 Bar
0010340110 Channel

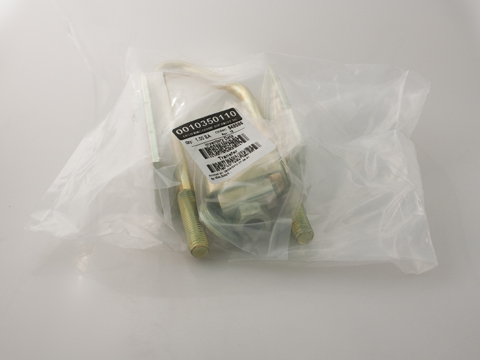

Fastening Top Angle to Parallel AUX. w/ Spacer
Newton # Type
0010350010 Bar
0010350110 Channel
Securing Top Angle to Parallel AUX.
Newton # Type
0010360010 Bar
0010360110 Channel
Securing Top Angle to Parallel AUX.
Newton # Type
0010370010 Bar
0010370110 Channel
V-bolt Kit for Rack
Newton #
0010390130
Fasten to Ceiling
Newton #
0010440030
2″ x 2″ x 1/4″ Angle Iron
Newton # Description
0030330230 12″
0030330430 18″

Cable Rack Application Guide

An example Illustration of a typical multi-tier cable rack assembly

Auxillary Framing Application Guide
Top
